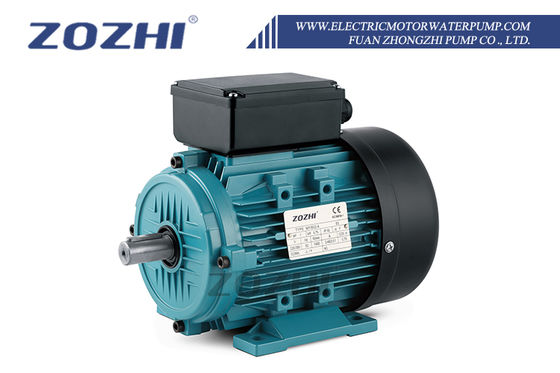

Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz

  • Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz
Tempat asal Cina
Nama merek ZOZHI
Sertifikasi CE,CCC,ISO9001
Nomor model My802-4
Kuantitas min Order 2 buah
Harga USD61.8piece
Kemasan rincian kasus CTNS/Veneer
Waktu pengiriman 14 hari kerja
Syarat-syarat pembayaran T/T, L/C
Menyediakan kemampuan 10.000 lembar per30 hari

Hubungi saya untuk sampel dan kupon gratis.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Output 1hp / 0,75kw Suhu Lingkungan 40°C
Kecepatan 3000 RPM Frekuensi 50/60hz
Bahan Stator Kawat Tembaga 100%. Pemasangan B3,B5,B14,B34,B35
Kewajiban 1 tahun Tipe pemasangan Kaki
Ukuran Flange B3 Tingkat Kebisingan 60dB
Isolasi Kelas F Fitur Lindungi Benar-benar Tertutup
Tegangan 220V-240V
Tinggalkan pesan
Deskripsi Produk
Product Description
MY series is superior motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment and agricultural fields where superior quality and reliability is demanded.
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 0
Type
MY802-4
Phase
Single phase
Power
1HP/0.75KW
Frequency
50hz/60hz
Voltage
220V~230V
Speed
1500RPM
Protection class
IP55
Duty
S1 (continuous)
Mounting
B3/B14/B5/B34/B35
Specification
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 1
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 2
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 3
FRAME
SIZE
MOUNTING DIMENSIONS(MM)
OVERALL DIMENSIONS(MM)

IMB14
IMB5
A B C D E F G H K
M N P R S T
M N P R S T
AB AC AD HD L
56
90 71 36 9 20 3 7.2 56 5.8
65 50 80 0 M5 2.5
100 80 120 0 7 3.0
110 108 100 156 198
63
100 80 40 11 23 4 8.5 63 7
75 60 90 0 M5 2.5
115 95 140 0 10 3.0
120 119 110 173 216
71
112 90 45 14 30 5 11 71 7
85 70 105 0 M6 2.5
165 130 200 0 12 3.5
132 137 117 188 250
80
125 100 50 19 40 6 15.5 80 10
100 80 120 0 M6 3.0
165 130 200 0 12 3.5
160 155 137 217 278
90S
140 100 56 24 50 8 20 90 10
115 95 140 0 M8 3.0
165 130 200 0 12 3.5
175 172 145 235 296
90L
140 125 56 24 50 8 20 90 10
115 95 140 0 M8 3.0
165 130 200 0 12 3.5
175 172 145 235 322
100L
160 140 63 28 60 8 24 100 12
130 110 160 0 M8 3.5
215 180 250 0 15 4.0
198 194 153 253 384


MODEL
Output
Voltange
Current
Full Speed
Eff@Load
Full-Load Power Factor
Ist/In
Break Down Torque
Approx. Weight
(HP) (KW)
(V)
IN(A)
(RPM)
(%)

(A)
TST/TN TMAX/TN
KG
MY561-2
0.12 0.09
230
0.75
2800
56
0.92
3
0.5 1.7
2.5
MY562-2
0.16 0.12
230
0.94
2800
60
0.92
4
0.5 1.7
3
MY631-2
0.25 0.18
230
1.13
2800
65
0.92
5
0.4 1.7
4.2
MY632-2
0.34 0.25
230
1.79
2800
66
0.92
7
0.4 1.7
4.5
MY711-2
0.5 0.37
230
2.61
2800
67
0.92
10
0.35 1.7
5.7
MY712-2
0.75 0.55
230
3.71
2800
70
0.92
15
0.35 1.7
6.7
MY801-2
1 0.75
230
4.93
2800
72
0.92
20
0.33 1.7
9.3
MY802-2
1.5 1.1
230
6.71
2800
75
0.95
30
0.33 1.7
10.6
MY90S-2
2 1.5
230
9.03
2800
76
0.95
40
0.3 1.7
13
MY90L-2
3 2.2
230
13.08
2800
77
0.95
65
0.3 1.7
16
MY100L-2
4 3
230
17.8
2800
79
0.95
92
0.3 1.7
25
MY561-4
0.08 0.06
230
0.58
1400
50
0.9
2
0.45 1.7
2.8
MY562-4
0.12 0.09
230
0.83
1400
52
0.9
3
0.45 1.7
3.4
MY631-4
0.16 0.12
230
1.01
1400
57
0.9
3.5
0.4 1.7
4
MY632-4
0.25 0.18
230
1.33
1400
59
0.9
5
0.4 1.7
4.5
MY711-4
0.34 0.25
230
1.93
1400
61
0.92
7
0.35 1.7
5.5
MY712-4
0.5 0.37
230
2.82
1400
62
0.92
10
0.35 1.7
6..5
MY801-4
0.75 0.55
230
4.07
1400
64
0.92
15
0.35 1.7
9.1
MY802-4
1 0.75
230
5.21
1400
68
0.92
20
0.32 1.7
10.4
MY90S-4
1.5 1.1
230
7.13
1400
71
0.95
30
0.32 1.7
13
MY90L-4
2 1.5
230
9.4
1400
73
0.95
40
0.3 1.7
16
MY100L1-4
3 2.2
230
13.6
1400
76
0.95
65
0.3 1.7
22
MY100L2-4
4 3
230
18
1400
77
0.95
88
0.3 1.7
29
Using Effects
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 4
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 5
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 6
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 7
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 8
Packing&Delivery
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 9
Company Profile
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 10
Fuan zhongzhi pump Co.,Ltd
Established in 2006,Fuan zhongzhi pump Co.,Ltd trademark registration "ZOZHI" has been a modernized private enterprise with scientific research,the production, sales and service . specialized in manufacturing various types of pumps,such as peripheral,centrifugal,jet,deep well,sewage pump etc,high efficiency AC motor, alternator and diesel generator.

Zhongzhi pump are widely used in shallow and deep well pumping,pipeline booster,water tower booster,garden irrigation, agriculture irrigation and aquaculture drainage etc.

Zhongzhi motor can be used for general driving,such as household appliance,pumps,fan and recording meters etc.

Zhongzhi generator fully applied to communication systems, data centers, mining, power, highways, engineering companies, financial systems, hotels, railways, airports ,commercial buildings, hospitals, factories, etc,and with strategic partners to establish a global service system. Our production of generator sets have become the most number of hotels, buildings and industrial and mining enterprises of backup power.

Zhongzhi products popular in more than 70 countries in Europe,America, the Middle East, Africa, Southeast Asia and other.

Motivated by our slogan“Solidarity,Exploration,Honest,Faith”, we strive to become the global leader in providing comprehensive and reliable solutions to make this world a better place to live in.
