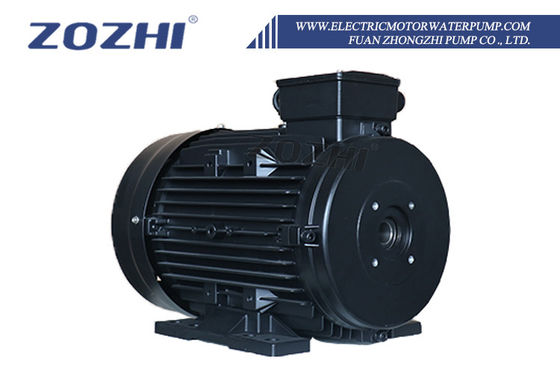

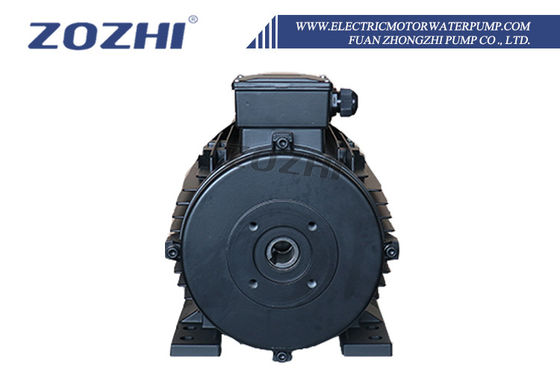

HS Series Hollow Shaft Motor for High Pressure Washer Systems with Aluminum Housing
Detail produk
| Saat ini | 1.5a | Fase | 3 Fase |
|---|---|---|---|
| pendorong | Impeler kuningan | Suhu Sedang | 5-50 ℃ |
| Voltase | 220/380V | Tipe Pompa | Sentrifugal |
| jenis | Motor Asinkron | Warna | Spesifikasi Pelanggan |
| Funtion | Pijat, Untuk bak mandi | Tekanan | Tekanan Tinggi |
| Model | HS112M2-4 | OEM | Ya |
| Perumahan | Aluminium | Kekuatan | 5.5kw/7.5Hp |
| Menyoroti | Hollow shaft motor aluminum housing,High pressure washer hollow shaft motor,HS series hollow shaft motor |
||
Deskripsi Produk
HS Series Hollow Shaft Motor for High Pressure Washer Systems
The HS Series Hollow Shaft Motor is engineered specifically for high-pressure cleaning systems, industrial washing equipment, and pump drive applications. Featuring a direct coupling structure between motor and pump, this design reduces overall machine footprint while enhancing installation efficiency in space-constrained industrial environments.
Key Features & Benefits
- Direct coupling structure minimizes overall system size
- Improved installation efficiency for compact industrial spaces
- Available in single-phase and three-phase configurations
- High efficiency operation with up to 90% energy efficiency
- Robust protection ratings for humid environments
- Suitable for continuous duty operation
- Low vibration performance for stable long-term operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Range | 0.37kW - 30kW |
| Speed | 880 - 2920 RPM |
| Protection Rating | IP54 / IP55 |
| Efficiency | Up to 90% |
| Duty Type | S1 Continuous Duty |
| Voltage | 220V - 400V |
| Insulation Class | F |
Application Areas: High-pressure washer systems, industrial cleaning plants, swimming pool pumps, water circulation equipment, and other applications requiring reliable, continuous operation in demanding environments.
Standards & Compliance
Built according to IEC standards, the HS series motors support IE1, IE2, and IE3 efficiency classes. Available with IP44, IP54, and IP55 protection ratings, along with B/F/H insulation classes, making them ideal for humid conditions and continuous-duty industrial applications.
Operating Conditions
Designed for S1 continuous operation with an ambient temperature range from -15℃ to 40℃, ensuring reliable performance across various industrial environments.
